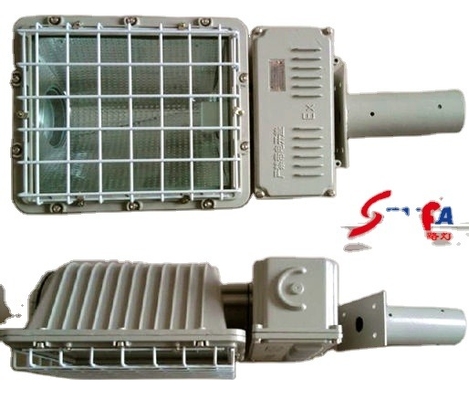

Dust Proof Led Plug-in Type Sodium ExdellBT4 Atex Light Explosion Proof 150W-400W Flood Light

1 Set
MOQ
$19.00(1 - 49 Sets) $18.00(50 - 79 Sets) $17.00(>=80 Sets)
preço
Dust Proof Led Plug-in Type Sodium ExdellBT4 Atex Light Explosion Proof 150W-400W Flood Light
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Features: Dust Proof
Color Temperature(CCT): 5000K (Daylight), Pure White
Input Voltage(V): 220V
Lamp Luminous Efficiency(lm/w): 165
Warranty(Year): 3-Year
Color Rendering Index(Ra): 80
Support Dimmer: No
Lighting solutions service: Lighting and circuitry design, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Product Weight(kg): 30
CRI (Ra>): 70
Lamp Luminous Flux(lm): 6000
IP Rating: IP65
Working Lifetime(Hour): 50000
Working Temperature(℃): -40 - 60
Base Type: E40
Light Source: LED
Item Type: Explosion-proof Lights
Product Name: Explosion-proof lamp Hanging-type explosion-proof light
Power: 20W-150W
Material: Aluminum
Application: Gas Industry
Warranty: 3year
Color: Customer's Require
Power Factor: 0.95
Certificação: CCC, ce, CQC
Informação básica
Certificação: CCC, ce, CQC
Condições de Pagamento e Envio
Packaging Details: regular packing or customized for Explosion-proof lamp Hanging-type or plug-in-type explosion-proof light
Supply Ability: 1500 Set/Sets per Week
Descrição de produto
Product Description



Our company  is the only manufacturer who has explosion-proof certification in street lamp industry .

2016 IP65Explosion-proof lamp Hanging-type explosion-proof light

for oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone II Hazardous Locations and IIA, IIB, IIC explosive gas atmosphere.

We can produce different specifications of the lamp and pole  according to your request. The prices are different according to the specifications of the products.Getting more information on this explosion proof lamp  , mail or call us please.







Features:

Explosion-proof lamp Hanging-type explosion-proof light

The lamp shell is made of aluminum alloy, on the surface of high voltage electrostatic plastic spraying. Independent electrical box;

Eyelet bolt fastening, quickly open, easy installation and maintenance;

Toughened glass lampshade, stainless steel exposed fasteners, defend the net surface spraying after galvanized;

The lamp body can be in a horizontal rotating 360º, elevation within -60º~+90º free adjustment;.

Reflector using parabolic shape, high reflectivity, upper beam can range up to 100 m.



Input Voltage AC 100-265 V
Working Power Frequency  Range  47-63HZ
Explosion-proof Grade Ex dIIB T6
Corrosion-proof Grade WF1
Lamp Efficiency(%) ≥90%
Color Temperature  2500K~7000K
Working life >50000 hours
Warranty  1 years
Certificate GB3836.IEC60079
Material Aluminium Alloy
Junction Temperature(TJ) <65°C
Working environment -40~60
IP rating IP65







SENFA Explosion Proof Lamp Referenced Components Pictures:

( Pole and Brackets,Explosion proof Connection box,Explosion proof Switch,Explosion proof Controller box)





Products description:



Explosion-proof lamp Hanging-type explosion-proof light

Pole details:

Light pole material selects the high quality low carbon steel manufacturing.

The height,diameter and thickness will produce as your required. There is a flange at the bottom of the light pole.

Light pole use automatic submerged arc welding.

Light pole embalmed using internal and external hot dip galvanized. Galvanized process including washing, phosphating, pickling, galvanizing, passivation , etc.

Electrostatic spray after galvanized.The color can be customized.









Production process:















 Production equipments:
















Packaging & Shipping







Company Brief introduction:

The company is endowed with over 60 specialized production equipment, which is the Department of Chinese product quality supervision and investigation centers member units as well as"Jiangsu AAA Quality and Brands Enterprise."

The company has passed ISO9001 international quality system certification, ISO14000 international environment system certification, China "CCC" mandatory product certification, IEC international standard certification and CE certification. Also, the product was identified as "Jiangsu High-quality Products" with national anti-explosion certification.

We also serve for some international projects such as Ethiopia East Industrial Park, Nigeria Ogun State Road 0479, Mutsu Angola Airport, Port of Luanda in Angola, Kenya Presidential Palace, Rwanda 15MW Power Plant, Vietnam Vinh Tan Thermal Power, Azerbaijan, and Netherlands projects.





Senfa Factory And Main Products:









Senfa Overseas projects:

                    The projects in Nigeria,Kenya,Ethiopia





Senfa Street Lamp Certificates:







FAQ:

What we offer

The company pursues "credibility first and integrity first" with high-quality product quality, reasonable prices, perfect services and vigorous spirit. It won the majority of customers’ trust and love.

Warranty

Senfa Street Lamp guarantees the purchaser for the period of two (2) to five (5) years for the whole lighting system.

Installation

Senfa Street Lamp  offers detailed instructions and videos for installation.

Especially we provide engineers to site installation training for 7 to 15 days accordingly.



Thanks for choosing our professional service and experience,Getting more information about Senfa Street Lamp,please visit our website :www.senfa99.com.
